Gear Strength Calculator: Lewis Form Factor

Calculating Maximum Load & Strength of Gears

  • This gear strength calculator uses the Lewis Form Factor to calculate the strength of a gear. The Lewis Form Factor is an empirical correction factor that approximates the difference between an involute gear and a theoretical rectangular cantilevered beam. Using the Lewis Form Factor allows for a simpler calculation by lumping the differences into a single parameter which has been empirically tested. The Lewis Form Factor depends on the number of teeth in the gear, as well as its pressure angle

Material properties are based on data from the Society of Automotive Engineers, Technical Report on Fatigue Properties, SAE J1099


Find, Compare, and Buy the Gear
Cutting Tools You Need to Mill Gears

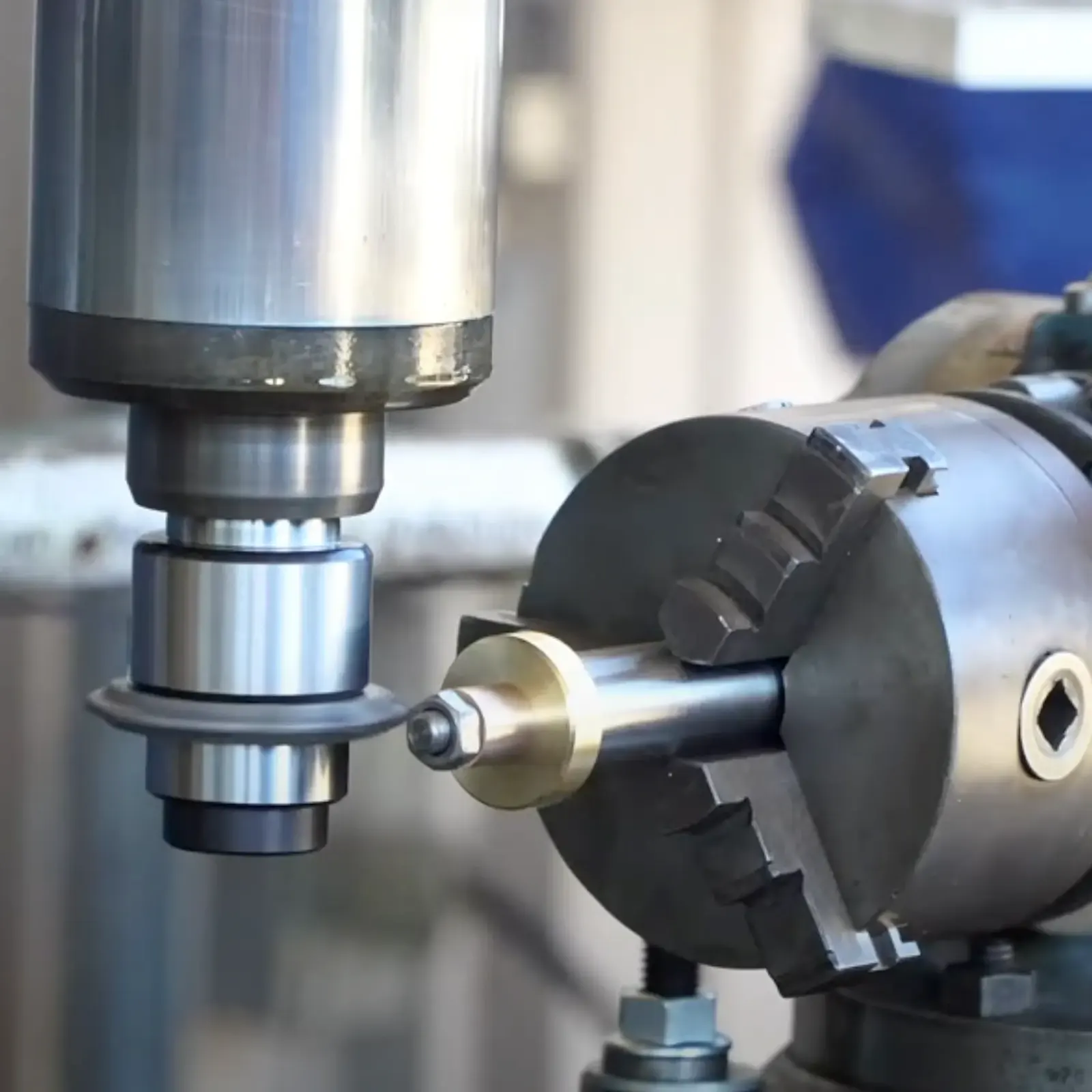

Using an involute gear cutter to mill a gear

Find the right Spur Gear Calculator from our full list of free tools

How to Calculate Gear Strength with the Lewis Form Factor

The Lewis Form Factor approach to gear strength follows the same logic as a standard cantilevered beam. A force is applied near the tip of the gear tooth which causes the tooth to deflect. The maximum allowable force is determined by the geometry of the gear and either the yield stress of the material, or its endurance limit. The yield stress is the point at which a material plastically deforms and no longer "bounces back" to its original shape. The endurance limit is typically lower, but represents the greatest stress the material can repeatedly (typically over ten million times) experience before it fails via cyclic fatigue failure.

Geometry and the Lewis Form Factor

Gears are complex shapes, which in return require complex calculations. However, in the world of involute spur gears, most gears look similar. Since the fundamental shape is derived from the involute profile, the profile is the same regardless of whether a gear has a diametral pitch of 24 or 48, or a module or 0.5 or 3. That is, as long as the pressure angle and tooth count remain the same.

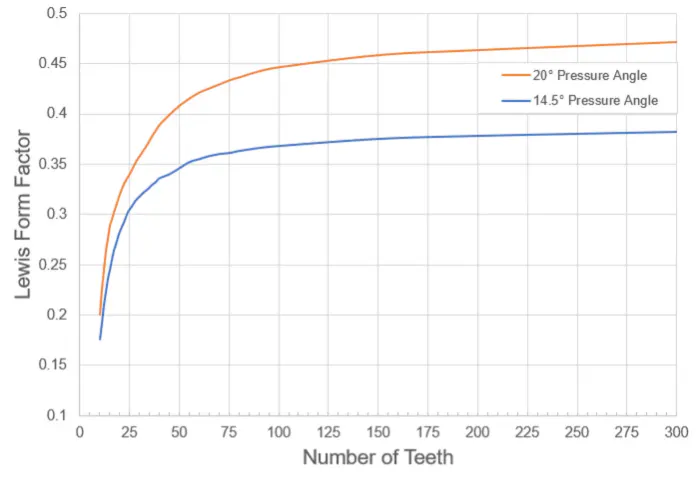

With that knowledge, Wilfred Lewis set out to find simplifying constants to make gear strength calculations easier. Back in 1893 Lewis determined the appropriate constants for 14.5º and 20º pressure angle gears from 10 to over 300 teeth. As one might expect the constants vary much more for low tooth count gears.

Historical and Modern Basis for Calculation

This calculator conforms to the bending equations found in Wilfred Lewis's "Investigation of the Strength of Gear Teeth." Proceedings of the Engineers Club, Philadelphia, 1893. Material properties are based on data from the Society of Automotive Engineers', Technical Report on Fatigue Properties, SAE J1099, 2018.

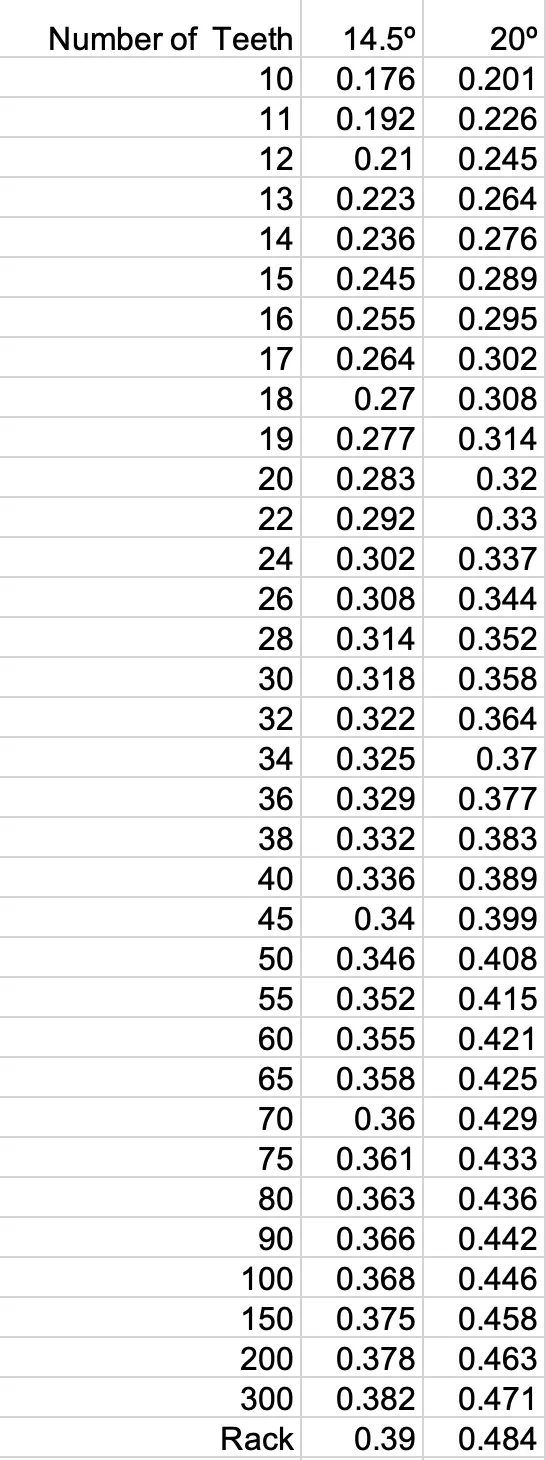

Lewis Form Factor Table

Below is a table of the Lewis Form Factor constants for 14.5º and 20º pressure angle gears, from 10-300 teeth.
